FS12

DNV approved control architecture for certified marine fire protection

FS12 is the control and monitoring platform for fixed aerosol fire suppression systems in IMO-based installations.

The system continuously supervises:

  • Dual 24V power supplies
  • Detector circuits
  • Aerosol activation loops
  • External control functions
  • Each circuit is actively monitored to detect faults, disconnections or voltage deviations. All system states are clearly indicated and logged, ensuring transparency for operators and surveyors.
  • FS12 provides controlled activation sequencing, ventilation shutdown control and structured fault diagnostics — supporting installations where documentation and classification compliance are mandatory.

Approved by DNV in accordance with IMO MSC.1/Circ.1270.

Quality equals safety.

The control and monitoring layer

In a certified aerosol fire suppression system, performance depends on more than individual components. It depends on how they are controlled and verified.

FS12 acts as the control layer between:

  • Detection devices
  • Alarm and warning equipment
  • Aerosol generators
  • Vessel power supply

The platform ensures that all components function together in accordance with maritime requirements — with continuous supervision and documented system status.The platform ensures that all components function together in accordance with maritime requirements — with continuous supervision and documented system status.

Continuous supervision and fault transparency

FS12 continuously monitors:

  • Dual independent 24V power supplies
  • Detector loop integrity
  • Aerosol activation loops
  • External control inputs

Voltage deviations, disconnections or internal irregularities are immediately indicated and logged.

Structured fault diagnostics support fast troubleshooting and transparent reporting to surveyors and authorities.

Controlled activation sequence

FS12 manages the activation process in clearly defined stages:

  1. Detection and alarm confirmation
  2. Pre-release warning period
  3. Ventilation shutdown
  4. Controlled aerosol activation
  5. System state verification

This structured approach ensures predictable system behaviour and safe operational handling.

Compliance and approval

  • Approved by DNV
  • Designed in accordance with IMO MSC.1/Circ.1270
  • Developed for integration in certified marine installations

FS12 supports installations where classification approval and documented system integrity are required.

Key Features

  • DNV type approved control system
  • Dual independent power supply monitoring
  • Modular sub-unit architecture
  • Continuous circuit supervision
  • Structured fault diagnostics
  • Controlled release sequencing
  • Only manuel release, according to IMO1270
  • Ventilation control integration
  • External activation and control support

Specifications

  • Power supply: 2 × 24VDC (–25% / +30%)
  • Activation current: 850 mA
  • Main unit dimensions: 179.2 × 199 × 109.5 mm
  • Sub-unit dimensions: 80 × 125 × 57 mm
  • Ingress protection: IP44
  • Max number of sub-units: 50
  • Operating temperature: -25o Celcius - 70o Celcius



FS12 family

The FS12 platform consists of:

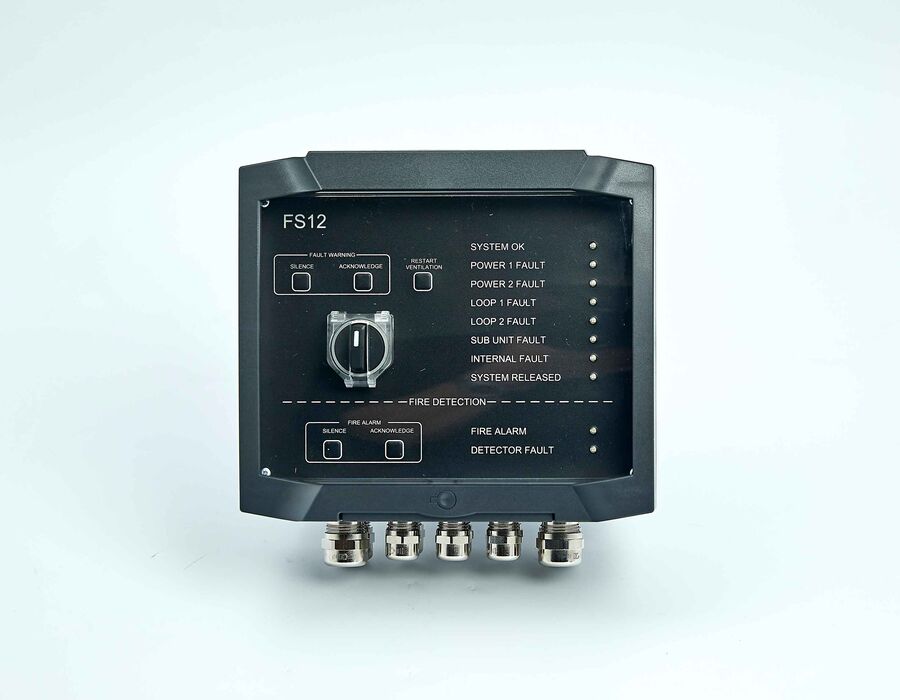

FS12 main-unit

Download datasheet

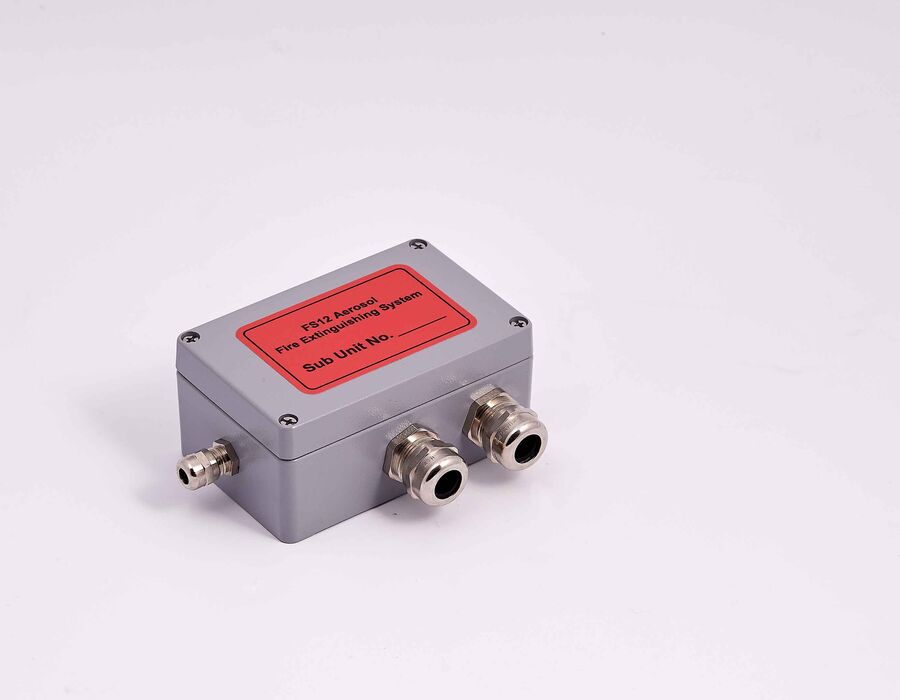

FS12 sub-unit Var. A

Variant A: With cable gland for aerosol.

Download datasheet

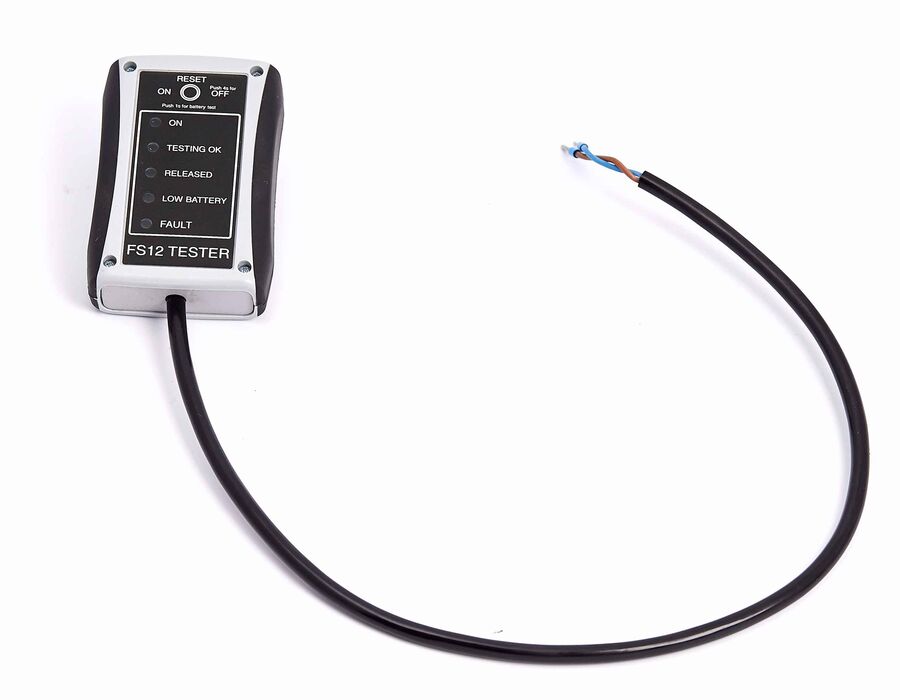

FS12 Test Device

Simulates the aerosol and detects activation when testing the installation.

Download datasheet

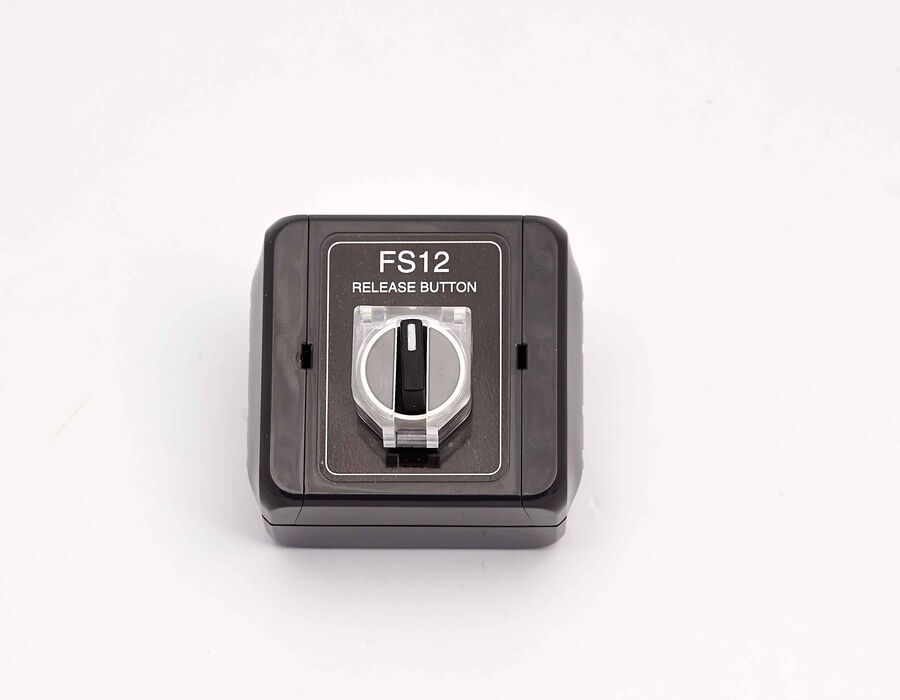

External Activation Switch

E.g. for use when it must be possible to activate the aerosol from remote locations.

Download datasheet

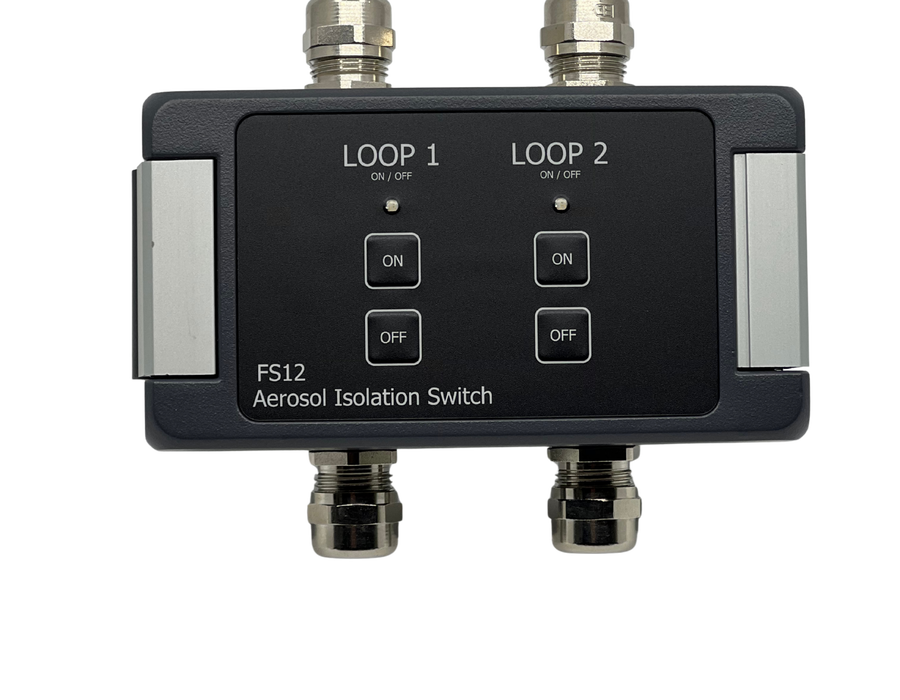

FS12 - External isolation Switch

To isolate a protected area, making it possible to enter the area.

Download datasheet

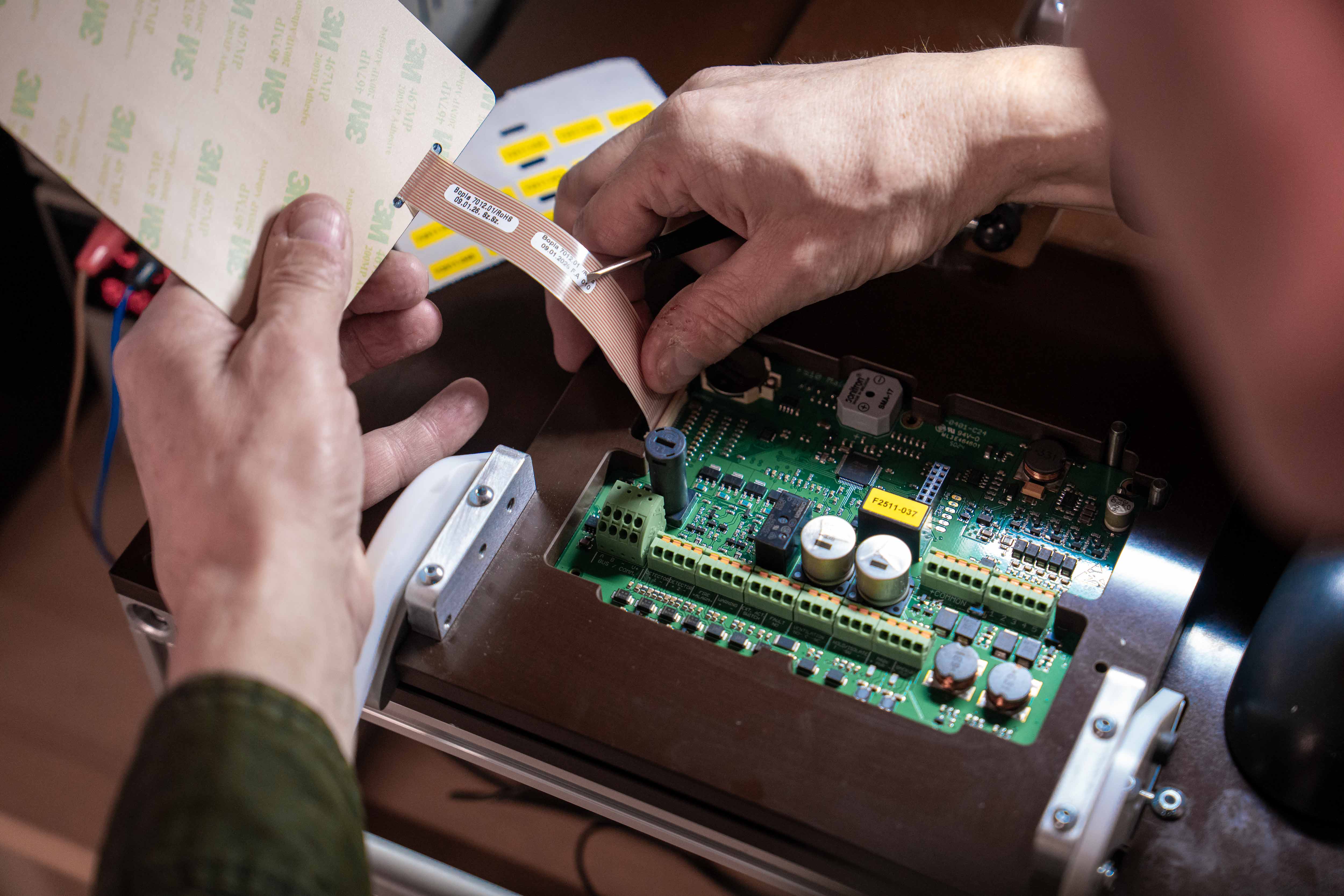

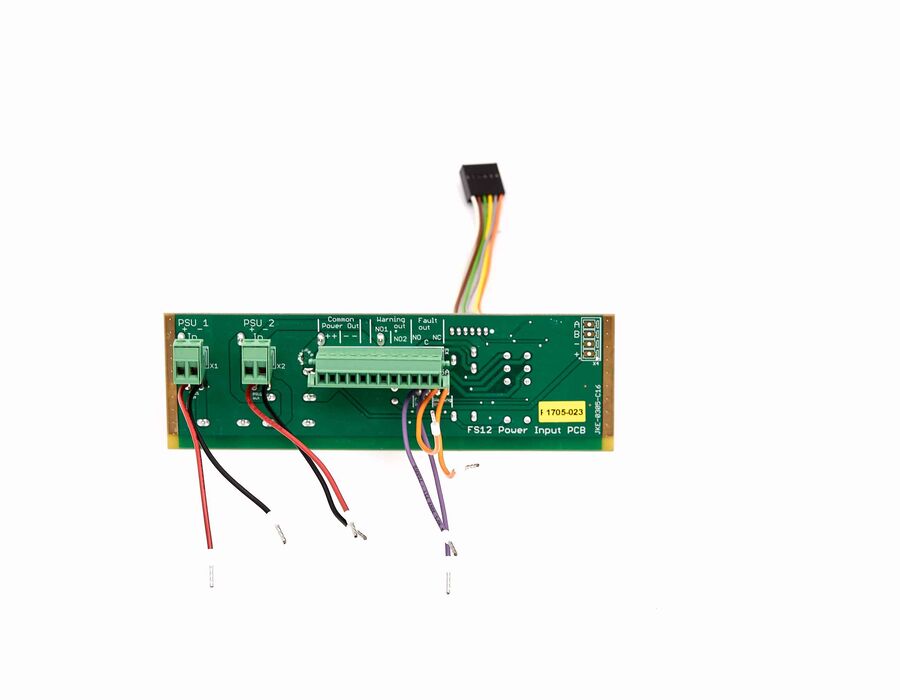

FS12 Power Input PCB

The FS12 Power Input PCB is mounted internally in the FS12 main-unit

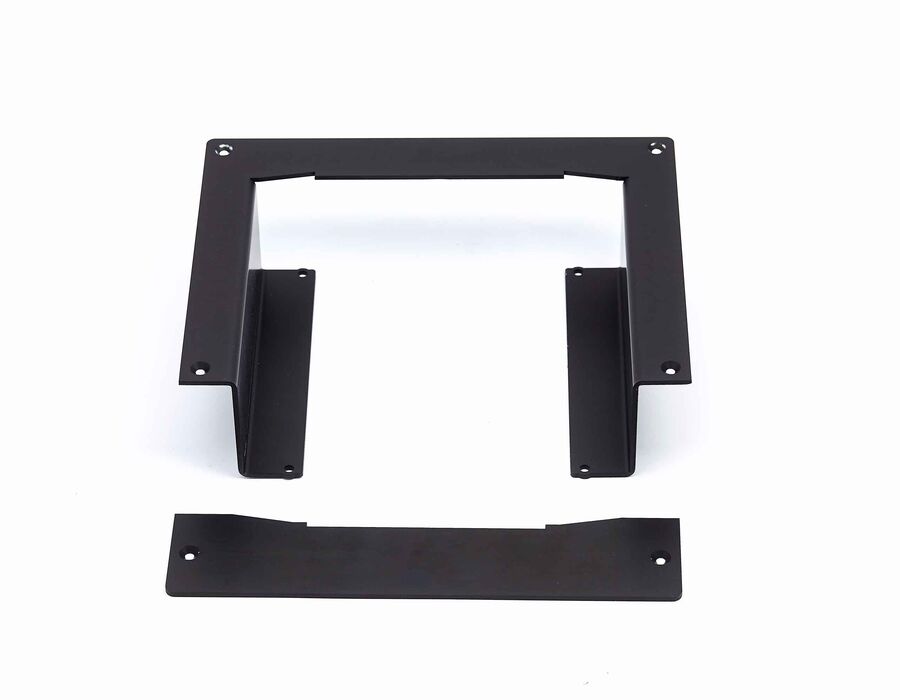

Mounting Frame for FS12 main-unit

For recessed mounting of the FS12 main-unit

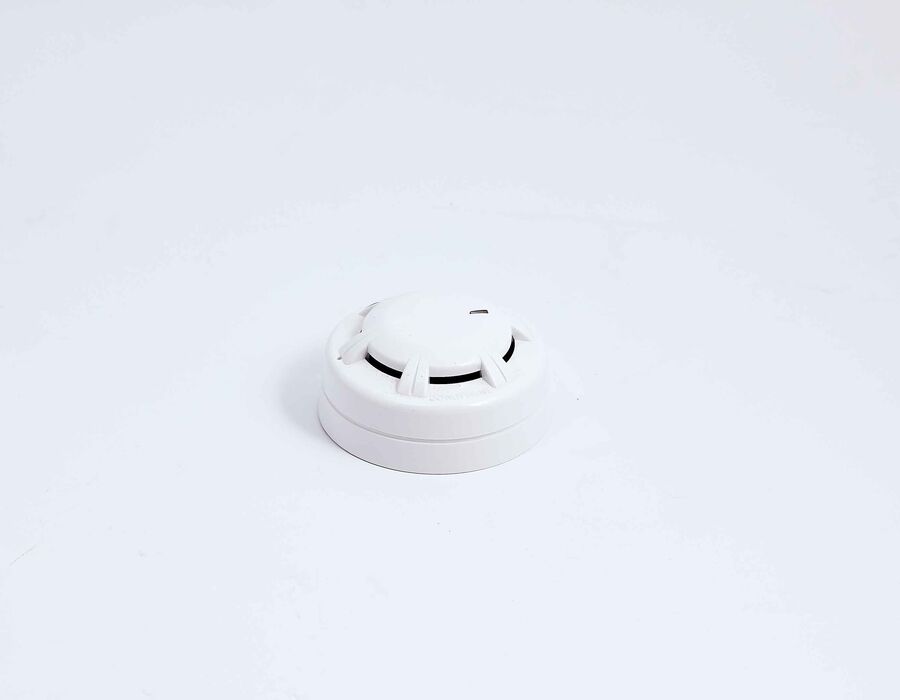

Smoke detector

Smoke detector approved for marine use

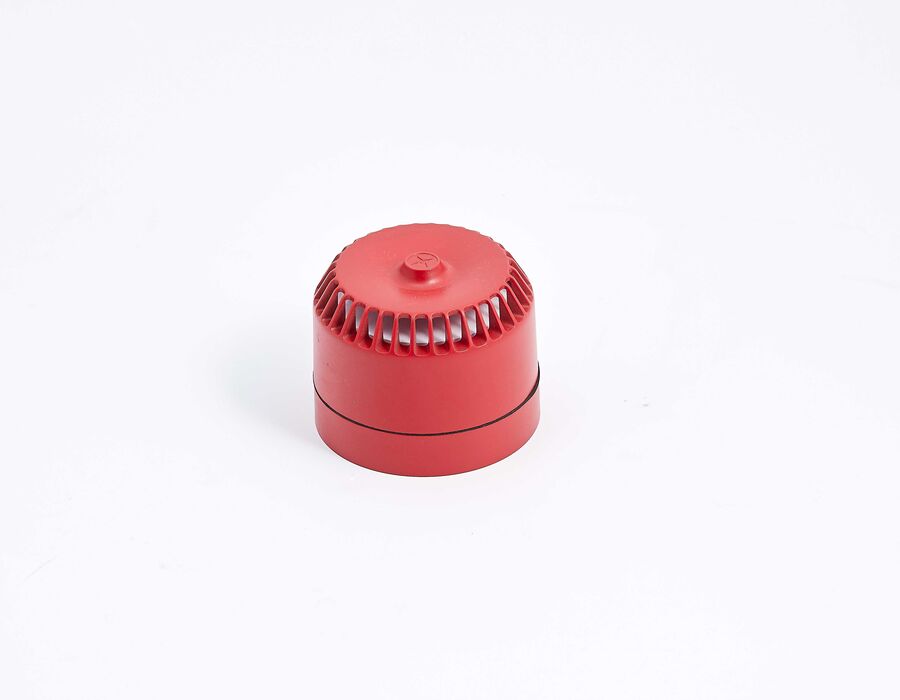

Combined sounder / beacon

For marine use, e.g. Aerosol release warning.

Why FS12

FS12 is developed for certified marine installations where compliance, documentation and system integrity are mandatory.

It provides:

  • DNV type approved platform
  • Modular loop-based structure
  • Continuous supervision of all critical circuits
  • Clear fault indication
  • Controlled activation sequencing
  • Survey-ready verification

FS12 is designed for installations where system control must be verifiable, structured and aligned with marine regulatory requirements.

Contact us

Flexible operation

The FS12 system is suitable for both small and very large fire suppression systems.

IMO aligned

The FS12 system is developed in accordance with the operational principles described in IMO MSC.1/Circ.1270.

Modular architecture

The FS12 system uses a modular loop-based architecture for scalable marine fire suppression installations.

Downloads

All aerosol fire suppression systems should use FS12 for control and monitoring. Once you have ordered your FS12 control panel, you may require the downloads available on this page.
