FS10

Control and monitoring system aligned with ISO 9094

FS10 provides structured control and supervision for aerosol fire suppression systems in non-IMO marine applications.

The system continuously monitors:

  • Dual 12V or 24V power supplies
  • Detection inputs and alarm outputs
  • Aerosol activation
  • External control functions

Configuration for automatic or manual activation and smooth FS10 Remote Panel for the bridge, all developed in alignment with ISO 9094 requirements for small craft fire protection.

Quality equals safety.

Intelligent control for smaller installations

In smaller marine installations, system simplicity must not compromise safety.

FS10 acts as the control and monitoring layer between:

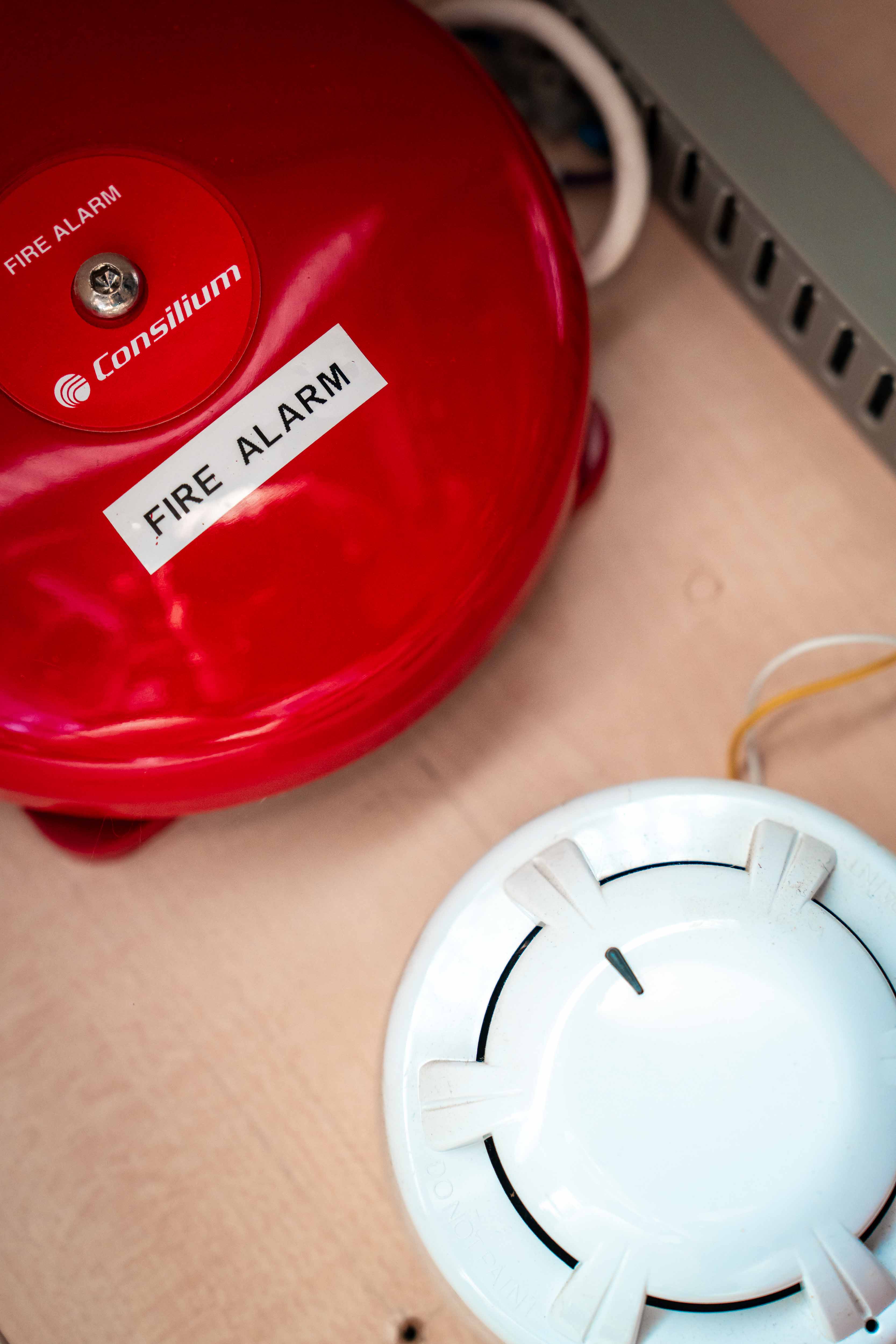

  • Detection devices
  • Alarm and warning equipment
  • Aerosol generators
  • Vessel power supply

The system ensures controlled activation logic, continuous supervision of critical circuits and clear operational status at all times.

Continuous system supervision

FS10 supervises:

  • Main and backup power supply
  • Detector inputs
  • Alarm and warning outputs
  • Aerosol activation circuits
  • External activation and isolate switches

All critical connections are monitored to detect faults or disconnections, ensuring system readiness before activation is required.

Configurable activation logic

FS10 allows flexible system configuration:

  • Automatic activation (1 input active)
  • Automatic activation (1 AND 2 active)
  • Automatic activation (1 OR 2 active)
  • Manual activation only
  • Adjustable activation delay

Integrated isolate functionality allows safe maintenance in protected areas.

This flexibility enables tailored protection for different vessel layouts and risk profiles.

Compliance and application scope

FS10 is developed in alignment with ISO 9094 for small craft fire protection systems.

It is intended for non-IMO marine installations where structured control and verified activation are required without the complexity of loop-based architectures.

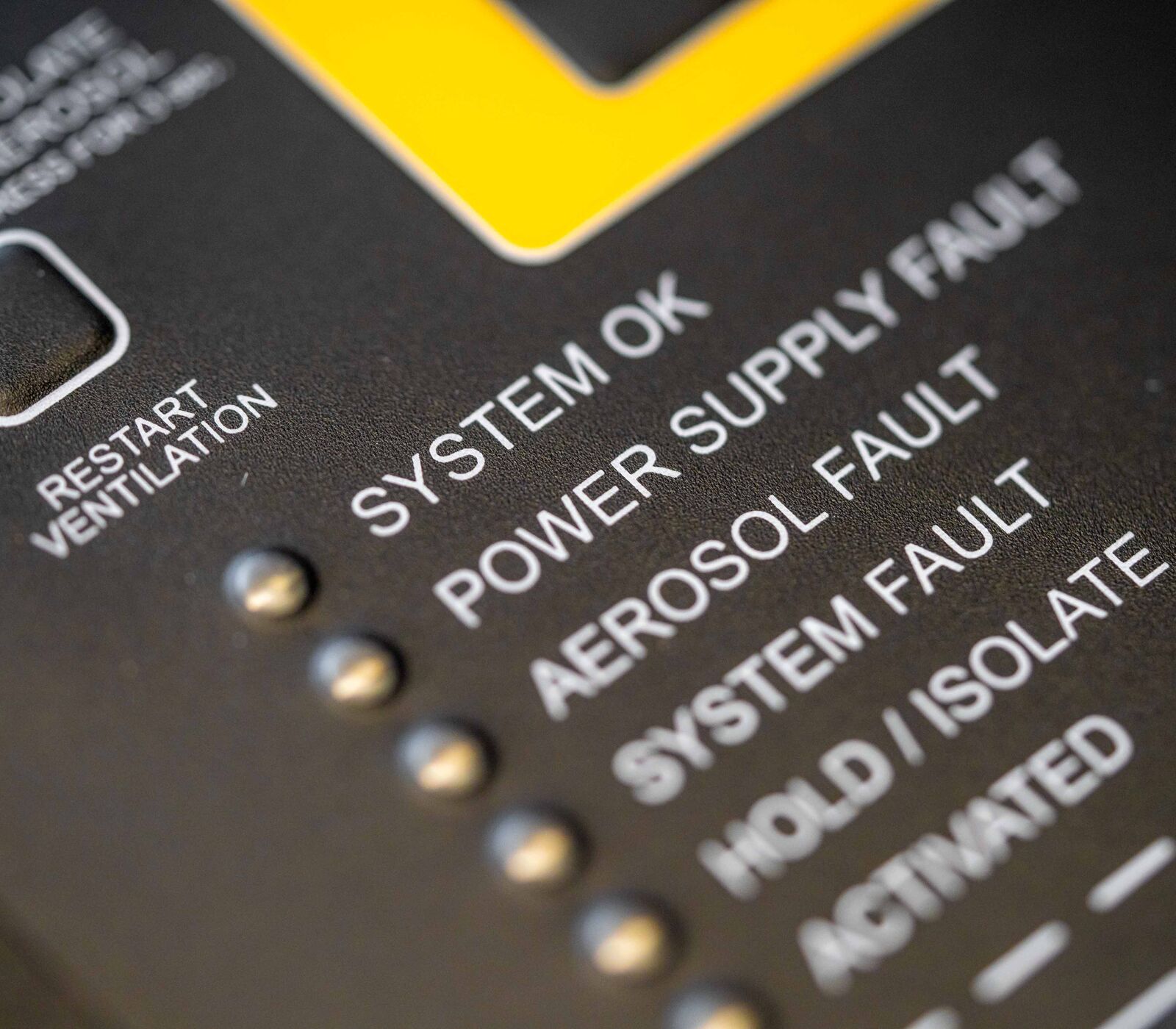

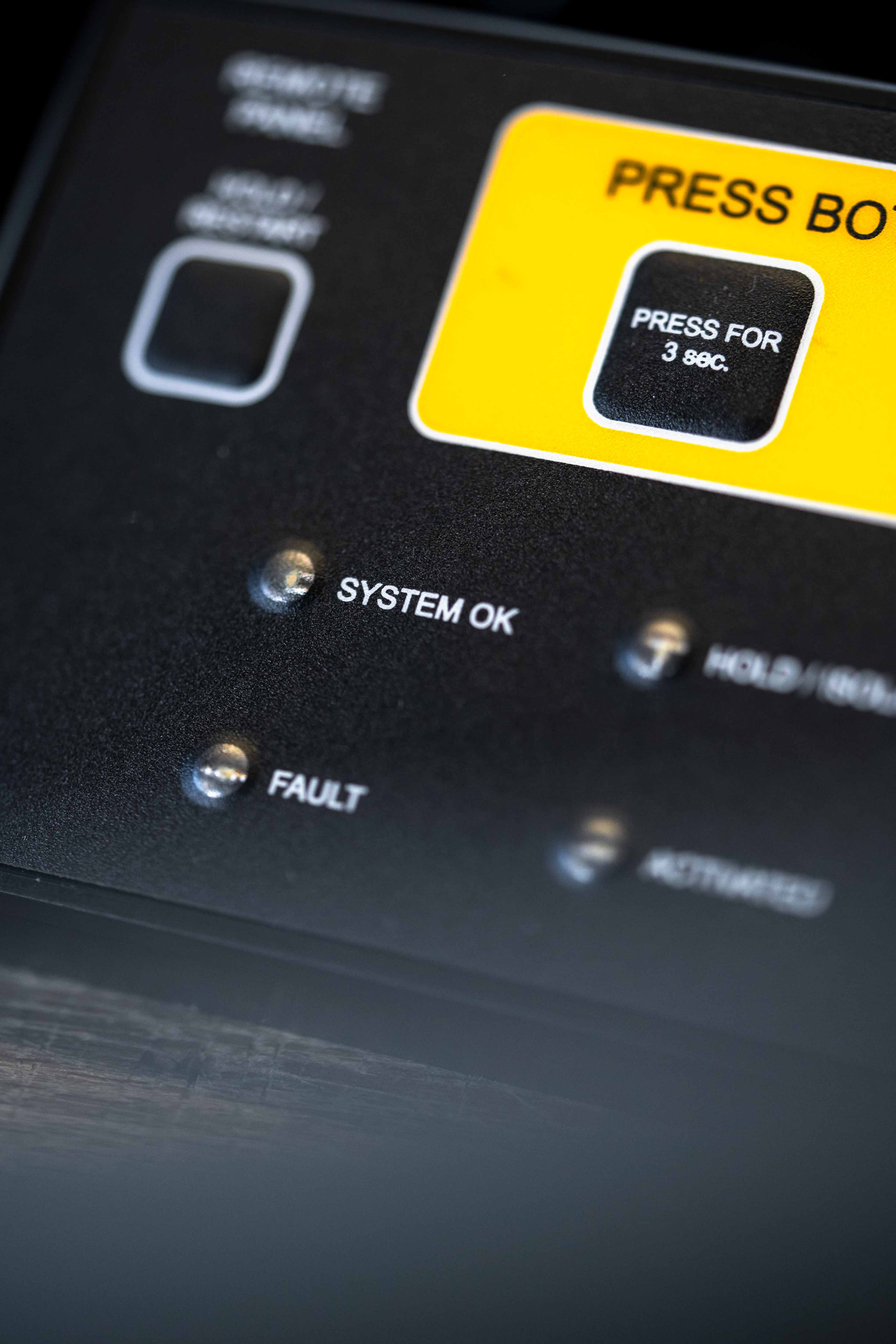

Clear status and fault indication

The FS10 system provides:

  • Dedicated fault indicators
  • Activation status indication
  • Hold / Isolate indication
  • Fail-safe fault relay output
  • Structured installation testing procedure

Installers and vessel owners gain clear insight into system condition during both commissioning and operation.

Key Features

  • ISO 9094 aligned control system
  • Dual power supply supervision
  • Configurable automatic activation logic
  • Adjustable activation delay
  • Integrated isolate functionality
  • Continuous circuit monitoring
  • Fail-safe fault relay output
  • Ventilation control output
  • Support for up to 5 aerosol generators

Specifications

  • Supply voltage: 12VDC or 24VDC
  • Current consumption, idle: < 50 mA
  • Current consumption, during activation: < 500 mA
  • Dimensions: 190 × 125 × 60 mm
  • IP rating: IP65
  • Operating temperature: –25°C to +70°C
  • Max aerosol generators: 5



FS10 family

The FS10 platform consists of:

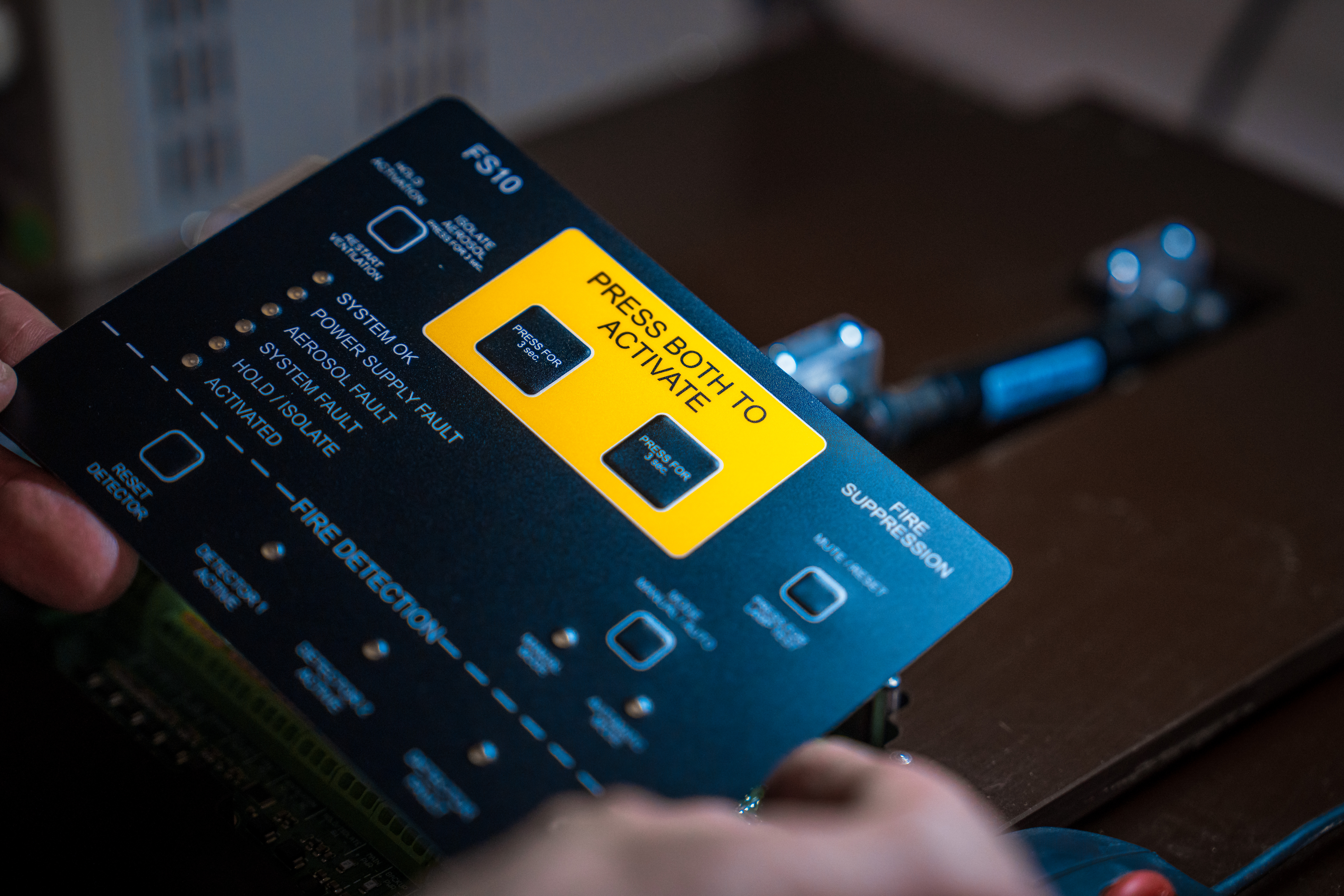

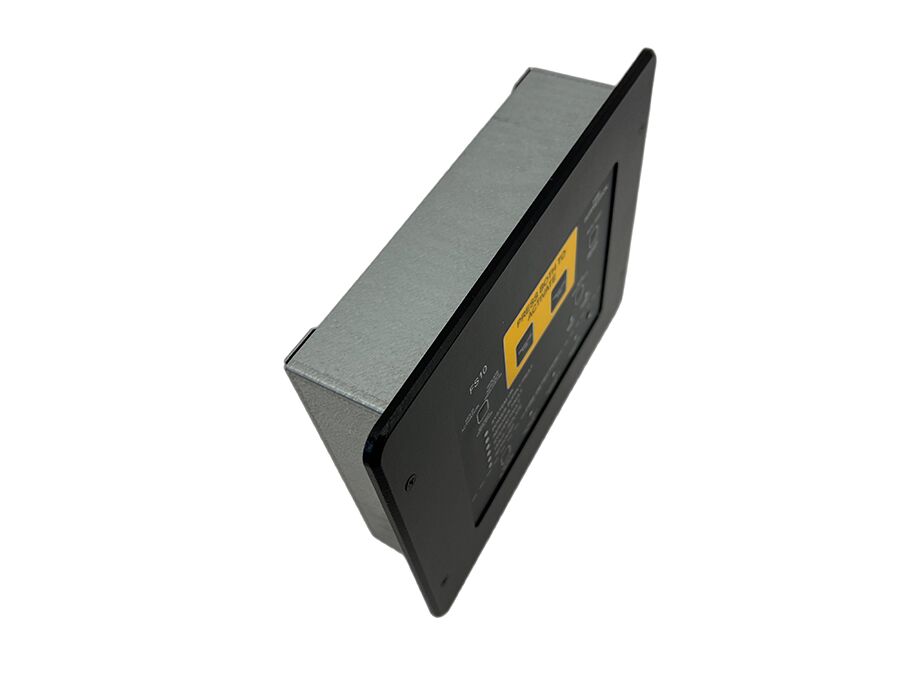

FS10 - Main Unit & Flush mounted

Download datasheet

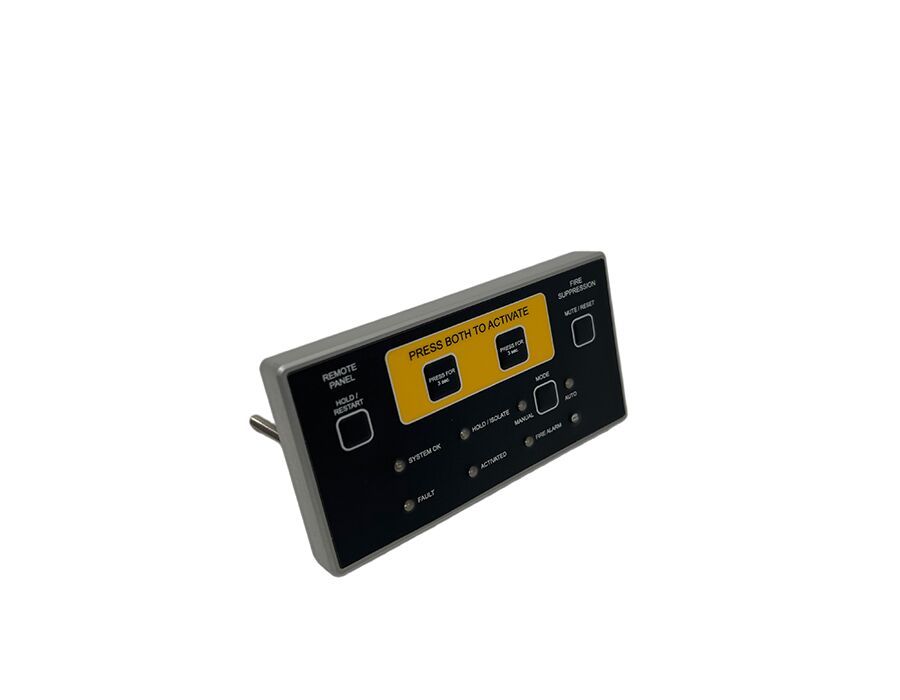

FS10 Remote panel

Download datasheet

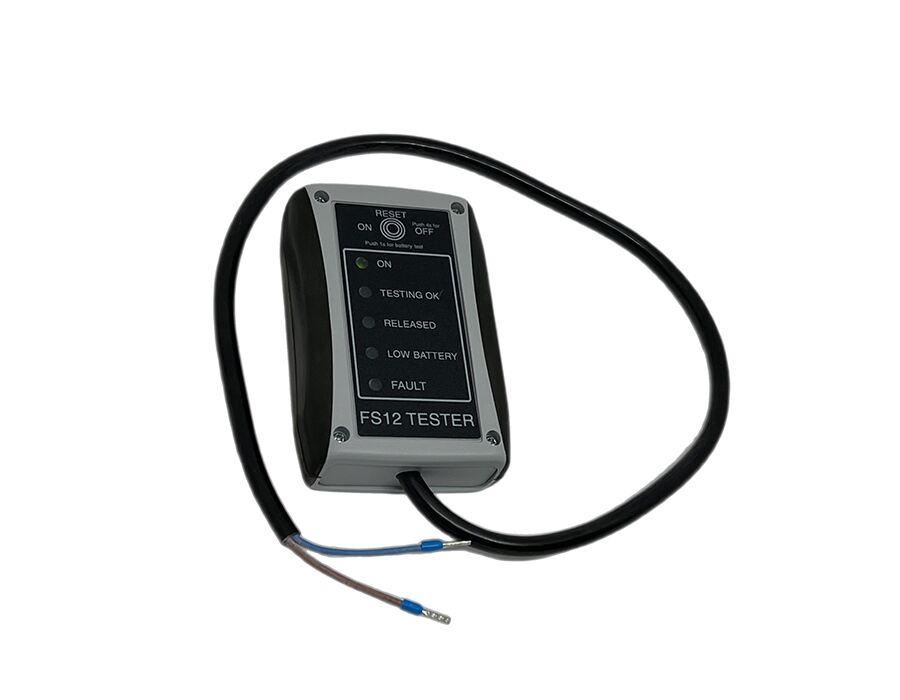

FS10 Tester

Download datasheet

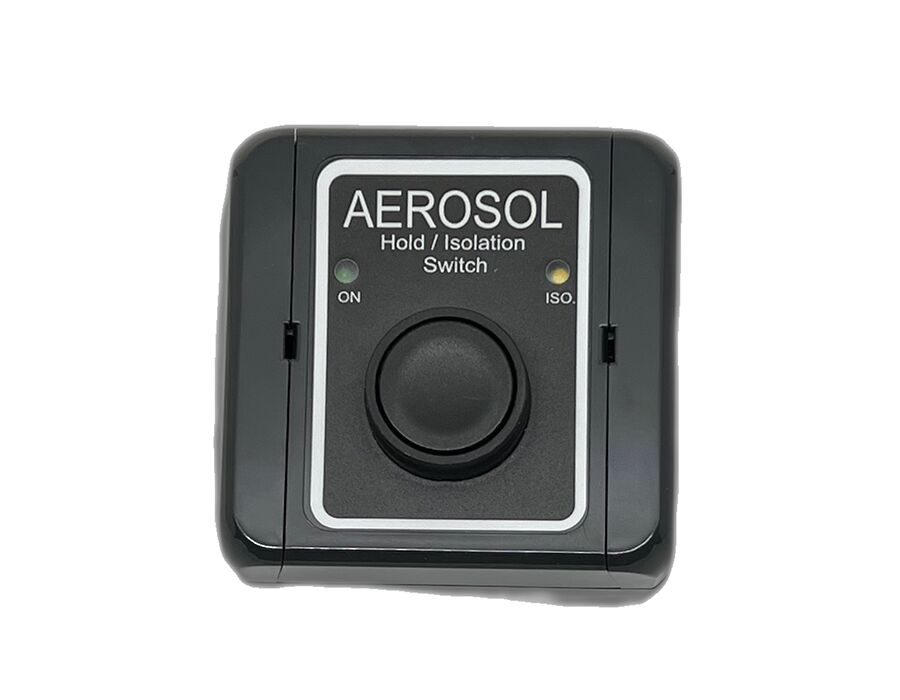

FS10 - External Isolation Switch

Download datasheet

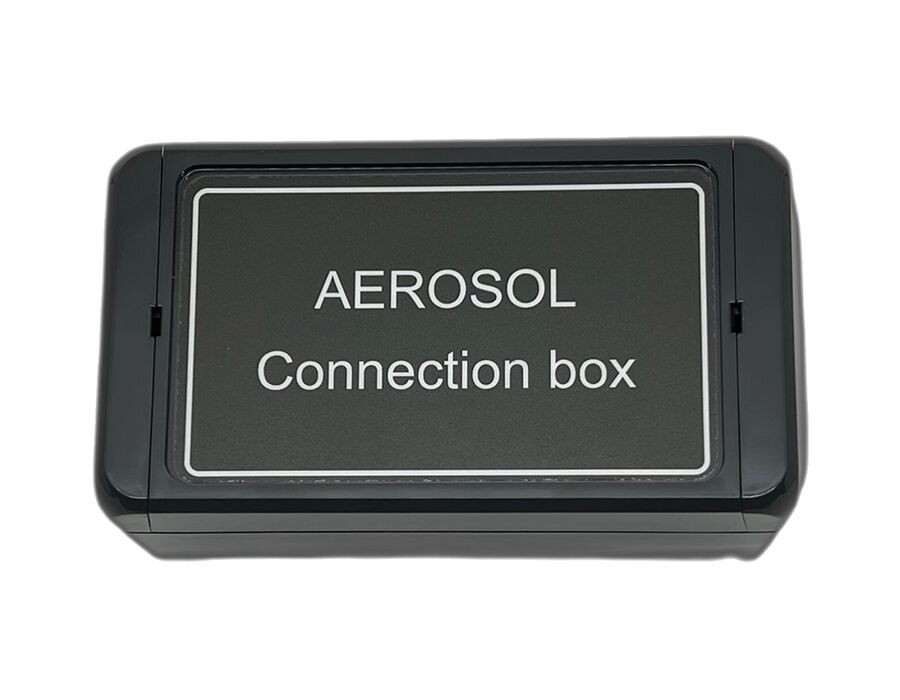

FS10 - Connection Box

Download Datasheet

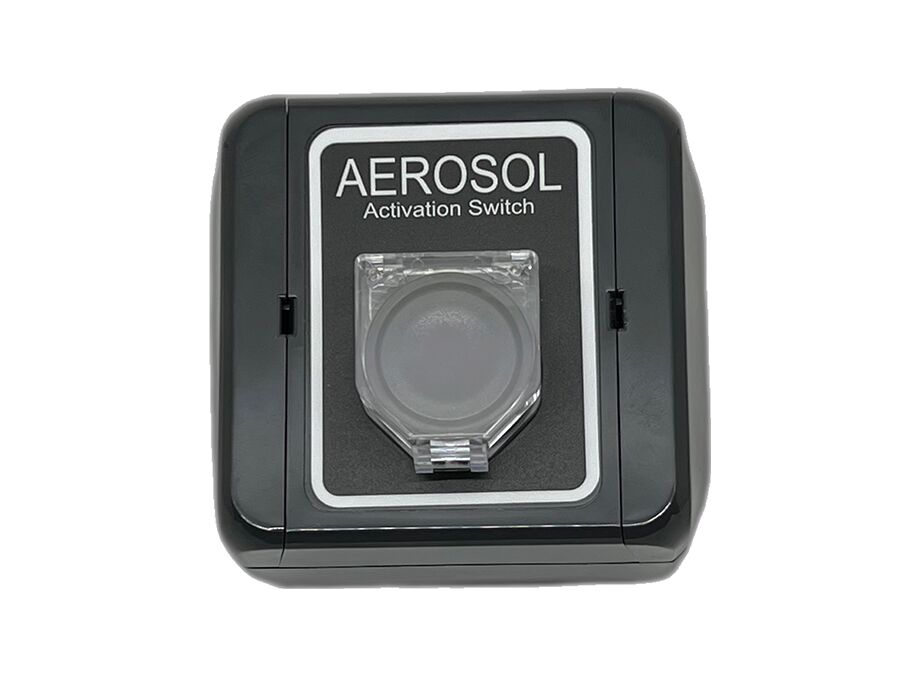

FS10 - External Activation Switch

Download datasheet

Why FS10

FS10 is developed for non-IMO marine installations requiring structured control in a compact and efficient platform.

It provides:

  • Controlled activation logic
  • Continuous supervision of critical circuits
  • Integrated alarm and release management
  • Clear operational transparency

FS10 delivers controlled protection for marine installations designed in line with ISO 9094:2022 principles.

Quality equals safety.

Flexible configuration

The FS10 system is developed for non-IMO applications and allows flexible system configuration based on the same core control philosophy used in FS12.

Marine design

The FS10 system is developed for marine fire suppression applications in line with ISO 9094 principles.

Digital configuration

The FS10 platform supports digital configuration, diagnostics and service through integrated Bluetooth access.
